Anaconda I12R Impact Crusher
WEIGHT: 44000KG
MISC: IMPACT CRUSHER BOX: MCLANAHAN UNIVERSAL IMPACTOR 1090MM X 1040MM (43 X 45). DIRECT DRIVE HYDRAULIC, 500-650RPM ON ROTOR 4 BAR ROTOR STANDARD 3 BAR ROTOR AVAILABLE. PRIMARY AND SECONDARY APRONS WITH REPLACEABLE TILES CSS CLOSED SIDE SETTING 20MM 100MM.
POWER PACK: TIER 3 - CUMMINS 283KW ENGINE, DIESEL TANK 530 LITRE, HYDRAULIC TANK 400 LITRE
OPERATION DIMENSION: LENGTH 17000MM, WIDTH 4270MM, HEIGHT 4340MM
TRANSPORT DIMENSION: LENGTH 17360MM, WIDTH 3490MM, HEIGHT 3395MM
FEEDER: CAPACITY 6.5M3 VIBRATING GRIZZLY FEEDER LENGTH 4300MM, WIDTH 2020MM 3015MM WITH EXTENSIONS PRESCREEN SECTION 920MM RADIO REMOTE INCL. FEEDER SPEED CONTROL

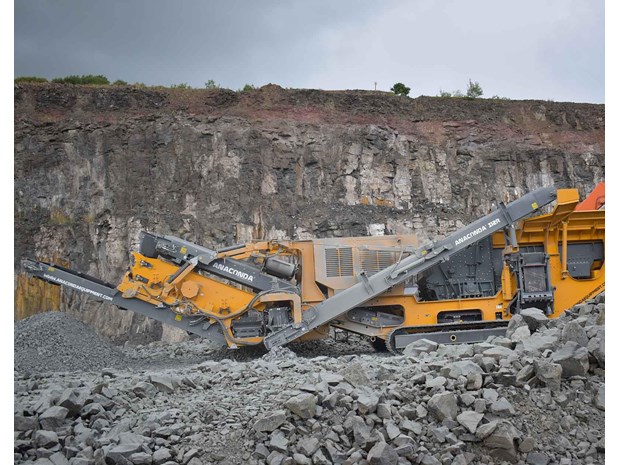

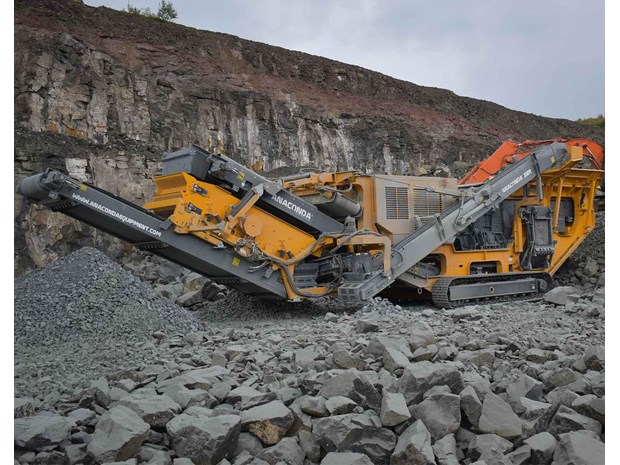

The Anaconda I12 Tracked Impact Crusher is fitted with a fabricated 43 (1090mm) diameter 4 bar rotor on a 45 (1140mm) wide Universal Crusher Impact Chamber. Large access doors on the side, back, and top of the chamber, hydraulic opening upper section of the housing for easy and safe access, along with two independent gravity hung impact curtains that can be individually adjusted from the exterior of the chamber makeup just some of the features on this chamber.
