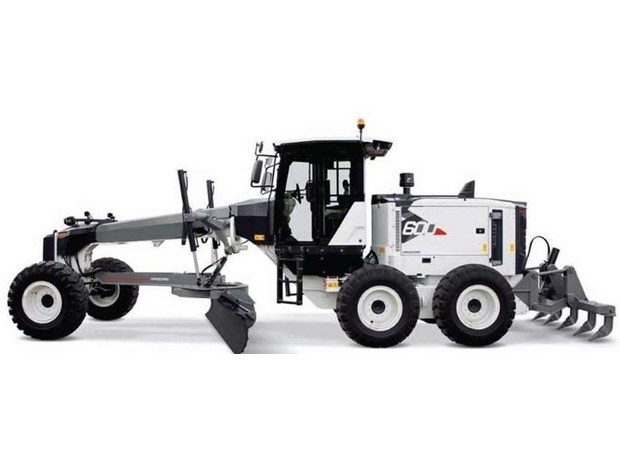

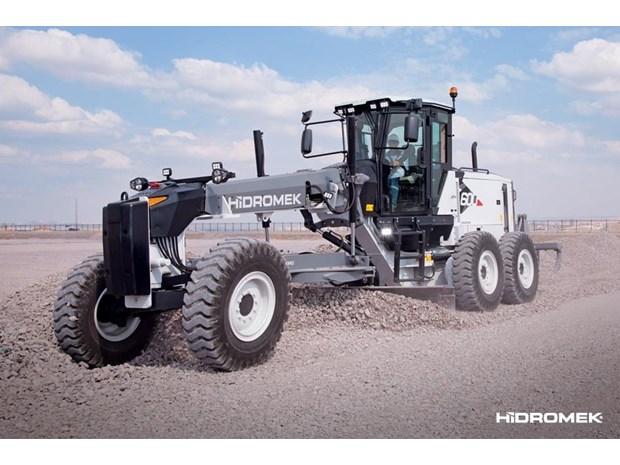

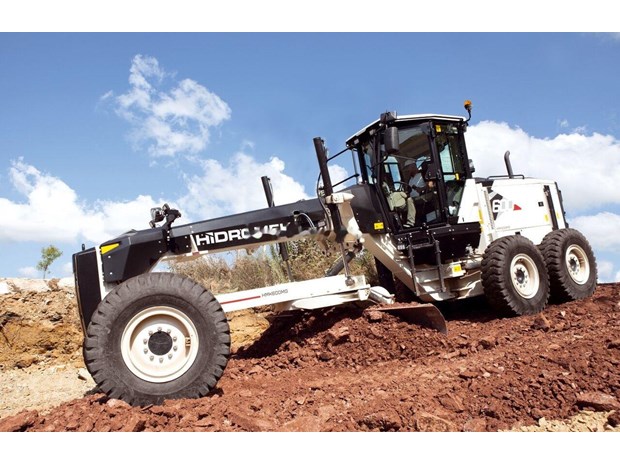

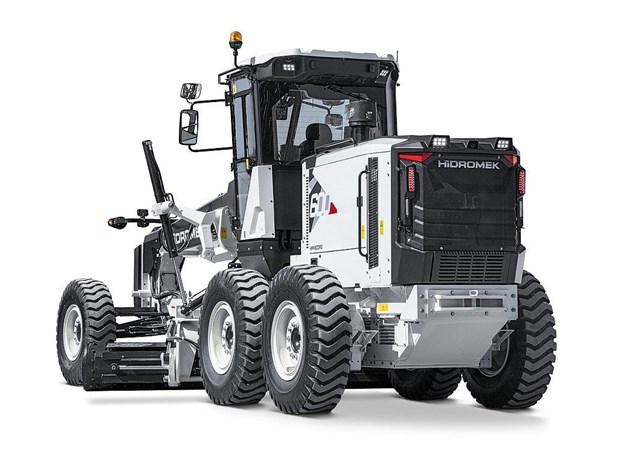

NEW Hidromek HMK600MG Motor Grader

GENERAL
Operating Weight 17,700 kg.
Articulated Frame 29 degrees.
4,310mm mould board (14).
Rear ripper scarifier
Tyres 17.5 - 25R
Equivalent to Cat 14M

ENGINE & RELATED ITEMS
Mercedes Benz OM926 LA engine, 4 Cycle, Turbocharged,
Charge Air-cooled Direct Injection, Electronic Controlled Diesel Engine.
140 -160kw (187-214hp) @ 2200 rpm
1000Nm Torque @ 1300 rpm

SPECIAL ARRANGEMENTS
EPA Tier 3A final regulation arrangement.

DRIVES & BRAKES
Powershift planetary electro-hydraulically actuated transmission
Double reduction spiral bevel and planetary gears.
Operator controlled hydraulic differential lock.
Front wheel lean 20 degrees left and right.
Front axle oscillation 15 degrees left and right.
Air actuated, multi disc oil cooled brakes actuate all 4 rear wheels.

HYDRAULIC SYSTEM
Closed centre load-sensing hydraulic system.
Variable axial piston type, 174 L/min.
Pilot pressure controlled type.

CONTROL
Load Sensing hydrostatic articulated steering.
Pilot operated blade and steering twin lever (joystick) control standard.
Steering wheel for optional steering control
8 Fwd. 8 Rev gears
Circle and blade slip clutch

SAFETY EQUIPMENT
Factory ROPS certified cab.
Hand rails.
Electrically controlled side mirrors
Anti-slip plates.
Safety glass windows.
Four front LED working lights.
Four Rear LED working lights.
Emergency Steering.

OPERATOR ENVIRONMENT
Climate Controlled Air-conditioned cabin.
Front Sunshade.
Advanced 7-inch Colour LCD display screen.
USB/MP3 player.
Air Suspension seat with heater.
Tilting Steering Column.
Adjustable Wrist Rests.

OTHER STANDARD EQUIPMENT
Travel Alarm.
Flashing Beacon.
Cabin lights.
Tool Kit.
Under Guard.

FACTORY OPTIONS (Not Included):
Front Counterweight.
Front Blade
Front Scarifier
3,700mm (12) or 4.310mm (14) Mouldboard

ELECTRICAL SYSTEM
Alternator 100 Amp,
Batteries Maintenance-free 1200 CCA, 12V (2).
Starter motor 24V
12 Volt Power Outlet (24V DC to 12V DC Converter).

MATERIALS
Comes with Delivery kit, Operators manual, Parts manual, Risk Assessment.

ONETRAK
Free 150 Hour First Service Included

WARRANTY
3 years / 6000 hours or whichever occurs first.

DELIVERY
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.
