Onetrak Pty ltd

New Anaconda TD620 Trommel Screen
FEEDER
Capacity 6.6m3 without extensions, 8m3 with Extensions, Belt Feeder, Feeder Conveyor Belt Width 1000mm
POWER PACK
Tier 3 JCB 444 DieselMAX 85kw Engine, Diesel Tank 265 litre, Hydraulic Tank 370 litre
DRUM
Length 5500mm x Diameter 2000mm (18 X 67)
TRACKS
Width 500mm
CONVEYORS
Fines Conveyor Belt Width 1000mm, Discharge Height 3100mm
Collection Belt Width 1050mm
Oversize Product Conveyor Belt Width 1000mm, Discharge Height 3300mm
PERFORMANCE
Capacity up to 200 T/Hour, Maximum Feed Size 300mm, Maximum Screen Size 75mm
OPERATING DIMENSIONS
Length 13850mm, Width 6900mm, Height 3740mm
TRANSPORT DIMENSIONS without grid
Length 11350mm, Width 3000mm, Height 3450mm, Weight 20000kg
OPTIONS
Radio Remote Tipping Grid
Single Deck Vibrating Grid
Hopper Extensions
Square Mesh, Punch Plate
Radio Remote Control for Travel
SPECIFIC TO THIS MACHINE
JCB Engine
Punch plate as optional extra
Mesh as per Customer's requirements
1-year/2000hr Full Factory Warranty
Sell price $356,500 + gst
Located in Maddington, WA
Stock ID: AN10076

2022 ANACONDA TD620

Used 2008 Komatsu PC300-8 Forestry Harvester
With Waratah HTH624C Harvesting Attachment
Being workshop checked
Machine Hours 23,594
Sell Price $85,000 + gst
Located in Bridgewater, Tasmania
Stock ID: U576

2008 KOMATSU PC300-8

USED 2010 VOLVO 220F LOG LOADER
Machine in good working condition with 16,000 hours.
Just completed transmission overhaul and pump repair (value $90,000  receipt can be provided).
Fitted with Ensign Grapple, Automatic Greasing System, Loadrite Weight System.
Go straight to work.
Location Mt Gambier, SA.
Price $165,000 plus GST
Stock ID: CON5

2010 VOLVO L220F

Used 2021 Hidromek HMK102B Supra Backhoe Loader
Hydraulic Tilting Quick Hitch
Fitted with 2000mm Hydraulic Broom
4 in 1 Bucket, Roll Over Forks, Extender-Hoe with Hydraulic Sideshift
Buckets include 600mm GP, 1200mm Mud and option of a 300mm Trench Bucket
Hydraulic Lock, DA Auxiliary Plumbing, QC Piping, Pattern Changer
UHF, E-Stops, Battery Isolators, Fire Extinguisher
Machine Hours approx 400
Sell price $165,000 + gst
Located in Hallam, Vic
Stock ID: OR119

2021 HIDROMEK HMK102S SUPRA

Used 2018 Hidromek HMK640 Wheel Loader
Machine Hours 4304 Approx
5m3 Bucket
Weigh Scales & Printer
Sell Price $195,000 + gst
Price ex-location
Located in Caboolture, QLD
Stock ID: OR096

2018 HIDROMEK HMK640WL

NEW Trommel Screen, Tier 3 JCB 444 DieselMAX - 85kw Engine, Capacity up to 200 T/Hour

ANACONDA TD620

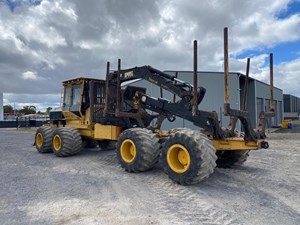

NEW Tigercat 1075C Forwader
-In stock & ready for delivery-
Weight: 27 325 kg
Engine: TIGERCAT FPT N67 TIER 2, 230 KW (308 HP) @ 2,000 RPM
The super duty 25-tonne Tigercat 1075C is a high capacity forwarder designed for demanding, high production applications.

TIGERCAT 1075C

Anaconda DF518 Scalper
WEIGHT: 35000KG
POWER PACK:TIER 3 - CAT C4.4 75KW, DIESEL TANK 390 LITRE, HYDRAULIC TANK 450 LITRE
OPERATION DIMENSION: LENGTH 15490MM, WIDTH 13840MM, HEIGHT 4860MM
TRANSPORT DIMENSION: LENGTH 15800MM, WIDTH 3000MM, HEIGHT 3400MM
FEEDER: CAPACITY 8M3, BELT FEEDER OR APRON FEEDER, FEEDER CONVEYOR BELT WIDTH 1200MM
SCREENBOX: TOP DECK 5490MM X 1520MM (18 X 5) BOTTOM DECK 5490MM X 1520MM (18 X 5), ANGLE 13-17 DEGREES
The Anaconda DF518 Tracked Scalping Screen is versatile and economical to run and can screen / stockpile 3 products at up to 400TPH. The DF518 has a double deck 18 X 5 screen box, a Hopper Capacity of 8M3 and 3 hydraulically folding stockpiling conveyors. The screen is very easy to set up and can be running within 20 minutes with hydraulic controls to aid the setting up of all conveyors, screen-box and hopper wing plates.

ANACONDA DF518

NEW Anaconda TR7542 Track Conveyor

Exceptional build quality and rapid set-up time go hand in hand with competitive pricing and versatility. Our Range of Tracked Conveyors can all be containerised and shipped worldwide cost effectively. Our Tracked Conveyors hydraulically fold and are tracked into and out of the container without any dismantling, meaning they are operational within 10 minutes of container delivery.

Weight: 14500kg
Tracks: Width 400mm. Conveyors: Main Conveyor Belt Width 1050mm, Adjustable Discharge Height 3000mm  10500mm
Power Pack: TIER 3 JCB444 DIESELMAX  63KW Engine, Diesel Tank 190 Litre, Hydraulic Tank 323 Litre
Operation Dimension: Length 23000mm, Width 2300mm, Height 10500mm
Transport Dimension: Length 12800mm, Width 2300mm, Height 2590mm
Feedboot: Capacity 1.6M3

ANACONDA TR7542

NEW Hidromek HMK310LC Excavator - H4-Series
Operating weight: 31,900 kg
ISUZU AH-6HK1X Tier3A engine
Factory ROPS/FOPS certified cab. Factory FOG guard.
Safety Lock Valve for arm & boom fitted.
Two outside rear-view mirrors.
Hand rails. Anti-slip plates.
Safety glass windows.
Three frontal working lights.
Rear-view camera.
Anti-restart system.
Climate Controlled Air-conditioned cabin.
Sliding fold-in front window.
Advanced Colour TFT Monitor
USB Connected MP3 player.
Transparent cabin roof cover.
Adjustable Suspension seat.
Cooled storage compartment
Opera Control System
WARRANTY
3 years / 6000 hours or whichever occurs first.
DELIVERY
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.

HIDROMEK HMK310LC-3

Anaconda I12R Impact Crusher
WEIGHT: 44000KG
MISC: IMPACT CRUSHER BOX: MCLANAHAN UNIVERSAL IMPACTOR 1090MM X 1040MM (43 X 45). DIRECT DRIVE HYDRAULIC, 500-650RPM ON ROTOR 4 BAR ROTOR STANDARD 3 BAR ROTOR AVAILABLE. PRIMARY AND SECONDARY APRONS WITH REPLACEABLE TILES CSS CLOSED SIDE SETTING 20MM 100MM.
POWER PACK: TIER 3 - CUMMINS 283KW ENGINE, DIESEL TANK 530 LITRE, HYDRAULIC TANK 400 LITRE
OPERATION DIMENSION: LENGTH 17000MM, WIDTH 4270MM, HEIGHT 4340MM
TRANSPORT DIMENSION: LENGTH 17360MM, WIDTH 3490MM, HEIGHT 3395MM
FEEDER: CAPACITY 6.5M3 VIBRATING GRIZZLY FEEDER LENGTH 4300MM, WIDTH 2020MM 3015MM WITH EXTENSIONS PRESCREEN SECTION 920MM RADIO REMOTE INCL. FEEDER SPEED CONTROL
The Anaconda I12 Tracked Impact Crusher is fitted with a fabricated 43 (1090mm) diameter 4 bar rotor on a 45 (1140mm) wide Universal Crusher Impact Chamber. Large access doors on the side, back, and top of the chamber, hydraulic opening upper section of the housing for easy and safe access, along with two independent gravity hung impact curtains that can be individually adjusted from the exterior of the chamber makeup just some of the features on this chamber.

ANACONDA I12R

Operating Weight 9,800 kg, approx.
1.2 m3 6 in 1 Front Bucket Capacity with Roll-over Forks
Extending Backhoe arm
Tyres 16.9 28 Rear, 16.9 28 Front
ENGINE & RELATED ITEMS
Perkins 11040-44TA engine, 4 Cycle, 4 Cylinder Turbocharged,
Charge Air-cooled Direct Injection, Electronic Controlled Diesel Engine.
74.5 kw (100 hp) @ 2200 rpm
410 Nm Torque @ 1300 rpm
SPECIAL ARRANGEMENTS
EPA Tier IIIA regulation arrangement.
DRIVES & BRAKES
Electronically controlled 2 or 4 Wheel Drive.
Lock up torque convertor
6 forward, 3 reverse gears.
Planetary reduction at Wheel end.
Hydraulic actuated, Wet Disc brakes actuate on all 4 Wheels.
Four-wheel steering
HYDRAULIC SYSTEM
Flow sharing and Flow charging Hydraulic System.
Variable axial piston type, 163 L/min.
Pilot pressure controlled type.
Anti-shock and anti-cavitation valves
CONTROL
Ride Control System. (MSS)
Hydrodynamic load-sensitive steering
Single lever pilot loader control.
Two joy stick backhoe control with pattern changer
Hydraulic side shift backhoe
FNR Tip Switch Kick-Down Function (forward/neutral/reverse).
Auto return to dig button (RTD)
6 in 1 Clam opening and closing proportional button
SAFETY EQUIPMENT
Factory ROPS certified cab.
Security Valves on backhoe stabilizers
Loader Arm Check Valve
Loader Bucket Check Valve
Backhoe Boom and Arm Check Valves
Anti-slip plates.
Safety glass windows.
Four front LED working lights.
Four Rear LED working lights.
Hydraulic backhoe boom lock
Dual Brake Pedals.
Emergency Brake accumulator.
OPERATOR ENVIRONMENT
Climate Controlled Air-conditioned cabin.
Adjustable steering wheel
Ergonomically designed and located control panels
CD/MP3 player.
Adjustable Suspension seat.
Adjustable backhoe control joy sticks.
Cool box
OTHER
Loader Bucket Cylinder Check Valve
Loader Arm Cylinder Check Valve
Backhoe Side Check Valve Boom and Arm
Backhoe QC Line
Stabilizer Pads
D/A piping Price Difference
Extra Hydraulic Line
Hyd. Side Shifter
Without Backhoe Bucket but with Pin Set
Front Bucket 1.2m3 Bolt on Cutting Edge
Hardened Pins 2 sets
ELECTRICAL SYSTEM
Alternator 85 Amp,
Batteries Maintenance-free 165 amp / hour
Starter motor 24V
MATERIALS
Comes with Delivery kit, Operators manual, Parts manual, Risk Assessment
WARRANTY
3 years / 6000 hours or whichever occurs first.
DELIVERY
Pricing does not include machine delivery unless otherwise quoted and shown within this submission.
Machine transport is to be calculated from the existing machine location in Australia or the nearest port / branch if not already in Australia.

HIDROMEK HMK102S SUPRA K4
