Onetrak Pty ltd

NEW Anaconda SR514 Sizing Screen

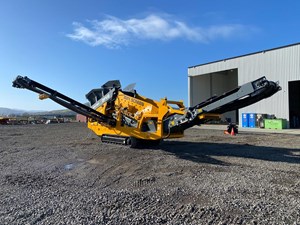

The SR514 is robust and economical to run and can screen / stockpile 4 products at up to 350TPH. The SR514 has a 14 X 5 screen box with an optional Triple or Double Deck, a 14ft feed hopper, main conveyor and either 3 or 4 hydraulically folding stockpiling conveyors. The screen is very easy to set up and can be running within 20 minutes with hydraulic controls to aid the setting up of all conveyors, screen-box and landing legs.

Optional Double or Triple Deck Rinser Spec.

ANACONDA SR514

NEW Scalper 20,000kg, Tier 3 - JCB 444 DieselMAX  63kw Engine, Capacity up to 600 T/H

ANACONDA FSL100

NEW Anaconda DF514 Scalper

The DF514 Scalping Screener is a versatile, robust and highly productive unit Designed to handle a wide variety of applications. Fitted with either a belt feeder of the option of a steel apron feeder, the DF514 is user friendly and easy to transport on and off site. The DF514 can offer two or three way separation of material.

Weight:23000kg
Power Pack: Tier 3 - CAT C4.4 75KW Engine, Diesel Tank 390 Litre, Hydraulic Tank 450 Litre
Operation Dimension: Length 13600mm, Width 13900mm, Height 4400mm
Transport Dimension: Length 13600mm, Width 3000mm, Height 3400mm
Feeder: Capacity 7.2M3, Belt Feeder or Apron Feeder, Feeder Conveyor Belt Width 1200mm
Screenbox: Top Deck 4270mm x 1520mm (14 X 5) Bottom Deck 4250mm x 1520mm (1311 X 5), Angle 15-19 Degrees

ANACONDA DF514

NEW Jaw Crusher. Caterpillar C9 Tier III ACERT 265kw Diesel Engine, Remote Control, Capacity up to 325 T/Hour

STRIKER JQ1170

NEW Anaconda DF410 Scalper

The DF410 Tracked Scalper range is designed for optimum screening and stockpiling of materials with the longest screen box in the compact screening segment of the market.

Weight:15600kg
Power Pack:TIER 3 - JCB 444 DIESELMAX  63KW Engine, Diesel Tank 260 litre, Hydraulic Tank 375 Litre
Operation Dimension: Length 11540mm, width 11250mm, height 3700mm
Transport Dimension: Length 9900mm, Width 2350mm, Height 3090mm
Feeder: Capacity 4.5M3 Belt Feeder, Feeder Conveyor Belt Widht 1050mm
Screenbox: Top Deck 3000mm x 1200mm (10 X 4) Bottom Deck 3000mm x 1200mm (10 x 4), Angle 15 Degrees

ANACONDA DF410

NEW Anaconda TD516R Trommel

The Anaconda TD516R Trommel Screen is robust and easy to use ensuring optimum levels of performance every time. This is our smaller trommel screen but its results are anything but! Fully equipt with a 5.15m x 1.37m screening drum this compact trommel ensures that you are able to get the most fines from your given application as possible. Complete with 2 conveyors to separate and stockpile your product the TD516R has no issue separating tonnages of 250 TPH, Proving its capabilities.

Weight: 14500kg
Power Pack: TIER 3 - JCB 444 DIESELMAX  63KW Engine, Diesel Tank 260 Litre, Hydraulic Tank 345 Litre
Operation Dimension: :Length 13370mm, width 6370mm, Height 3150mm
Transport Dimension: Length 11690mm, Width 2280mm - 2420mm, Height 2540mm - 2730mm
Feeder: Capacity 4M3 Without Extensions, Belt Feeder, Feeder Conveyor Belt Width 900mm
Drum: Length 5150mm x Diameter 1370mm (169 X 45). Tracks: Width 300mm

ANACONDA TD516R

NEW Anaconda FTR150 Feeder Conveyor

The FTR150 is robust and can be used in a variety of applications including sand & gravel, aggregates, compost and coal. The unit has a variable speed belt feeder and a 50ft stockpiling conveyor which is ideal for truck/wagon/barge loading or to act as a surge feeder in a new or existing quarry plant.

Weight: 13300kg - Weight with Tipping Grid 15000kg - Weight with Vibrating Grid 17800kg
Power Pack: TIER 3 JCB 444 DIESELMAX  63KW Engine, Diesel Tank 160 Litre, Hydraulic Tank 345 Litre
Operation Dimension: Length 17300mm, Width 2250mm, Height 6580mm
Transport Dimension: Length 11900mm, Width 2250mm, Height 2500mm
Feeder: Capacity 10m3 with extensions, Belt Feeder, Feeder Conveyor Belt Width 1050mm

ANACONDA FTR150

Striker HQR1312 Impact Crusher
HOPPER: 10M3 / 14M3
CRUSHER: 1.300MM / 1,210MM
FORWARD PRODUCT CONVEYOR: 1200MM WIDE / 2126MM DISCHARGE HEIGHT
POWER PACK: CAT C13 315KW
OPERATION DIMENSION: L17,475, W5,051, H5,021
TRANSPORT DIMENSION: L17,674, W3,796, H4,191, 62T
SIDE CONVEYOR: OPTIONAL 600MM WIDE
SCREEN: 4300 X 1500 SINGLE DECK

STRIKER HQR1312

Anaconda FTR100 Feeder Conveyor
WEIGHT: WEIGHT 12700KG - WEIGHT WITH TIPPING GRID 14400KG - WEIGHT WITH VIBRATING GRID 17200KG
POWER PACK: TIER 3 JCB 444 DIESELMAX 63KW ENGINE, DIESEL TANK 160 LITRE, HYDRAULIC TANK 345 LITRE
OPERATION DIMENSION: LENGTH 11680MM, WIDTH 2250MM, HEIGHT 4150MM
TRANSPORT DIMENSION: LENGTH 11900MM, WIDTH 2250MM, HEIGHT 2500MM
FEEDER: CAPACITY 10M3 WITH EXTENSIONS, BELT FEEDER, FEEDER CONVEYOR BELT WIDTH 1050MM
The Anaconda FTR100 is robust and can be used in a variety of applications including sand & gravel, aggregates, compost and coal. The unit has a variable speed belt feeder and a 33ft stockpiling conveyor which is ideal for truck/wagon/barge loading or to act as a surge feeder in a new or existing quarry plant.

ANACONDA FTR100

NEW Anaconda TR7542 Track Conveyor

Exceptional build quality and rapid set-up time go hand in hand with competitive pricing and versatility. Our Range of Tracked Conveyors can all be containerised and shipped worldwide cost effectively. Our Tracked Conveyors hydraulically fold and are tracked into and out of the container without any dismantling, meaning they are operational within 10 minutes of container delivery.

Weight: 14500kg
Tracks: Width 400mm. Conveyors: Main Conveyor Belt Width 1050mm, Adjustable Discharge Height 3000mm  10500mm
Power Pack: TIER 3 JCB444 DIESELMAX  63KW Engine, Diesel Tank 190 Litre, Hydraulic Tank 323 Litre
Operation Dimension: Length 23000mm, Width 2300mm, Height 10500mm
Transport Dimension: Length 12800mm, Width 2300mm, Height 2590mm
Feedboot: Capacity 1.6M3

ANACONDA TR7542

NEW Trommel Screen, Tier 3 JCB 444 DieselMAX - 85kw Engine, Capacity up to 200 T/Hour

ANACONDA TD620

Anaconda I12R Impact Crusher
WEIGHT: 44000KG
MISC: IMPACT CRUSHER BOX: MCLANAHAN UNIVERSAL IMPACTOR 1090MM X 1040MM (43 X 45). DIRECT DRIVE HYDRAULIC, 500-650RPM ON ROTOR 4 BAR ROTOR STANDARD 3 BAR ROTOR AVAILABLE. PRIMARY AND SECONDARY APRONS WITH REPLACEABLE TILES CSS CLOSED SIDE SETTING 20MM 100MM.
POWER PACK: TIER 3 - CUMMINS 283KW ENGINE, DIESEL TANK 530 LITRE, HYDRAULIC TANK 400 LITRE
OPERATION DIMENSION: LENGTH 17000MM, WIDTH 4270MM, HEIGHT 4340MM
TRANSPORT DIMENSION: LENGTH 17360MM, WIDTH 3490MM, HEIGHT 3395MM
FEEDER: CAPACITY 6.5M3 VIBRATING GRIZZLY FEEDER LENGTH 4300MM, WIDTH 2020MM 3015MM WITH EXTENSIONS PRESCREEN SECTION 920MM RADIO REMOTE INCL. FEEDER SPEED CONTROL
The Anaconda I12 Tracked Impact Crusher is fitted with a fabricated 43 (1090mm) diameter 4 bar rotor on a 45 (1140mm) wide Universal Crusher Impact Chamber. Large access doors on the side, back, and top of the chamber, hydraulic opening upper section of the housing for easy and safe access, along with two independent gravity hung impact curtains that can be individually adjusted from the exterior of the chamber makeup just some of the features on this chamber.

ANACONDA I12R
